Technical specifications

Reach 6,3–8,3 m
Mowing width 1,2 m
Transport height 3,2 m–3,8 m
Blade width 40–80 mm
Drive system Hydraulic or PTO
Mowing side Right
Operation Driver
Purpose of use Mowing grass and undergrowth

Main advantages

  • Long reach
  • Safety and reliability
  • Good overview over the process

Characteristics

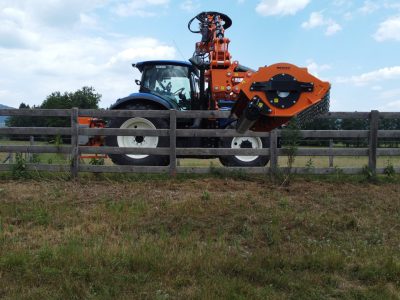

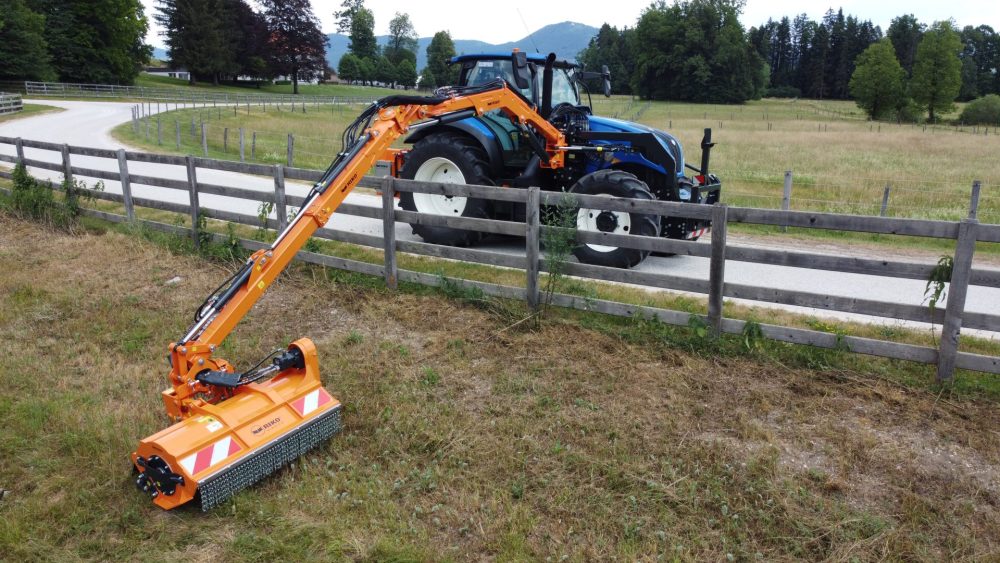

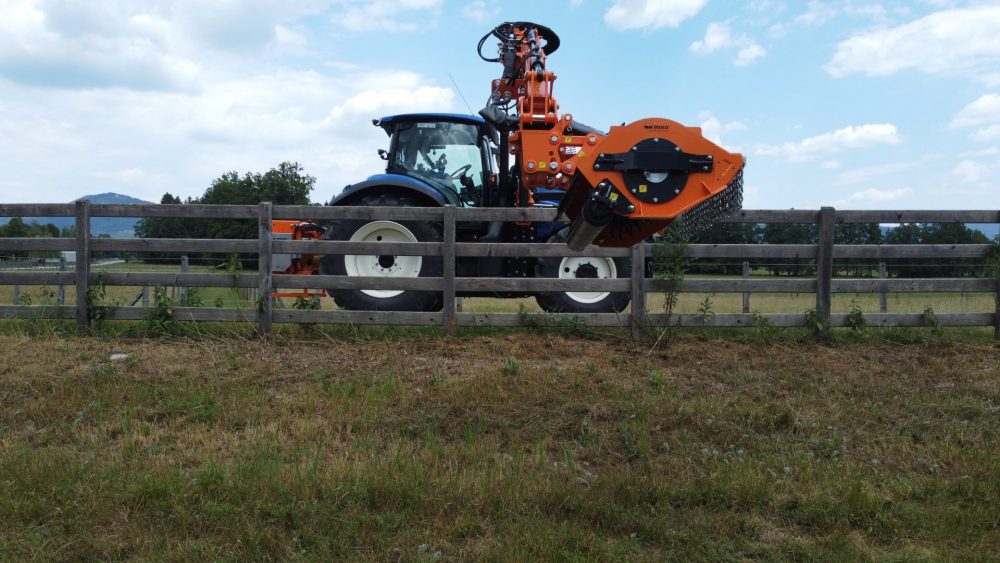

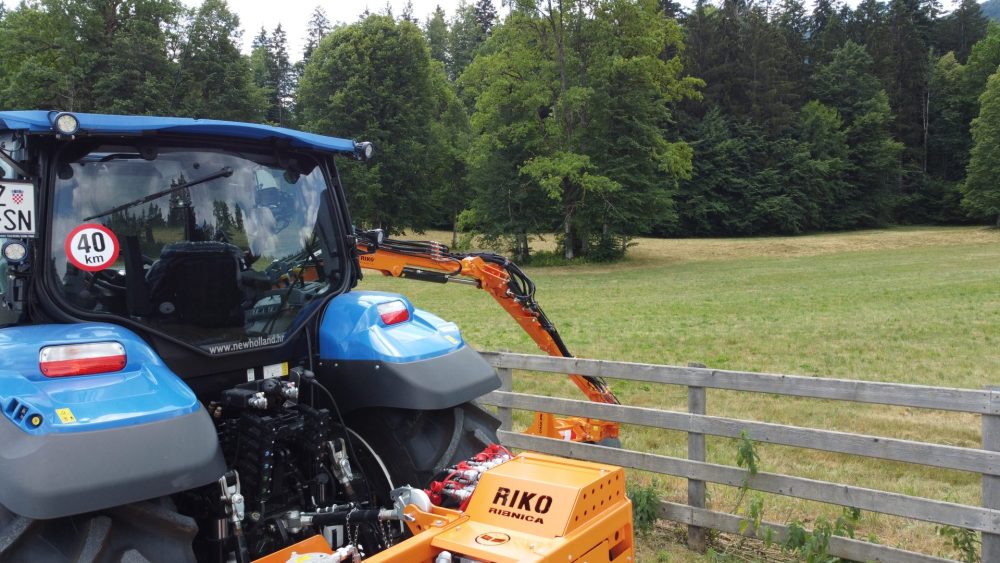

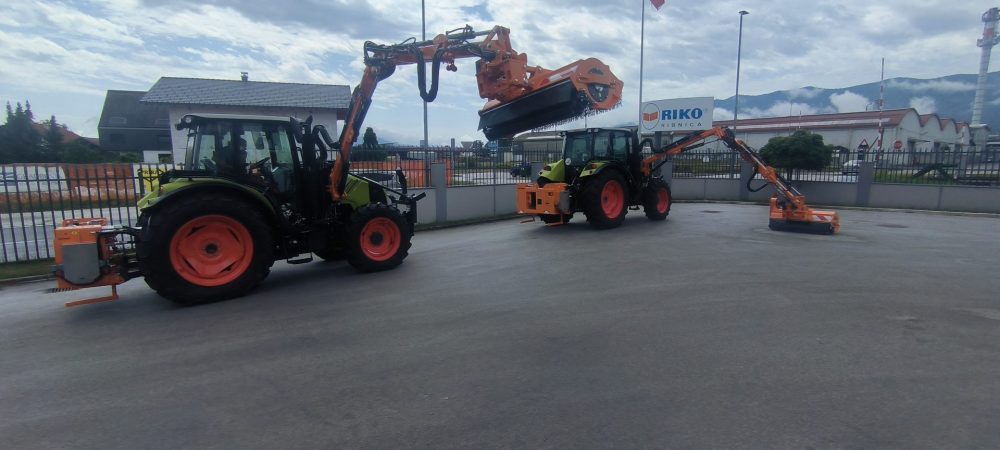

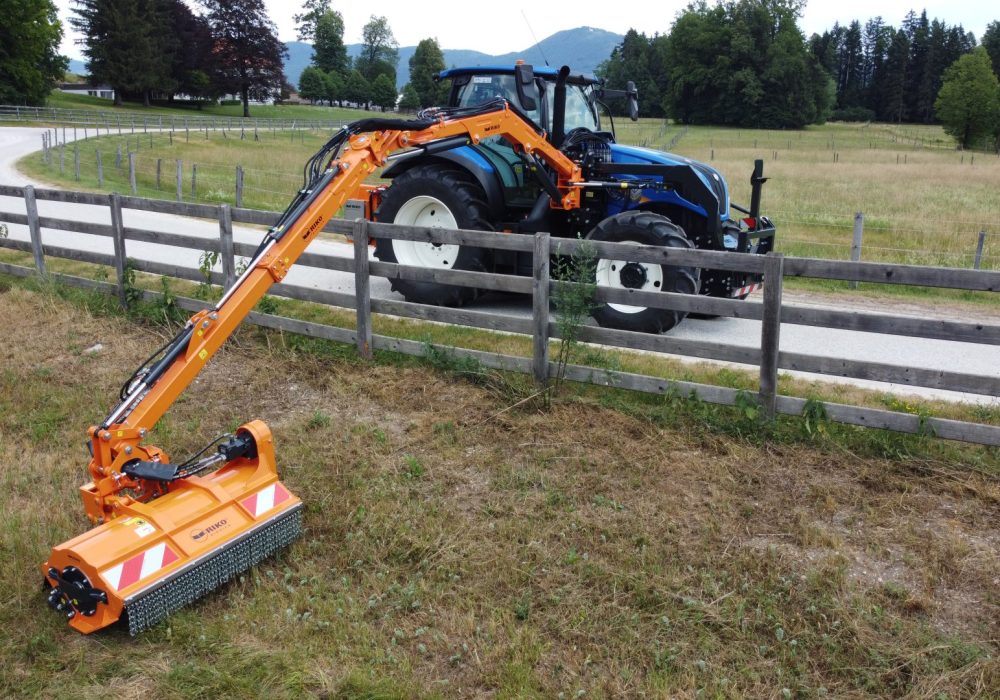

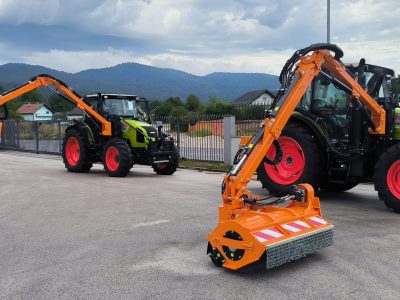

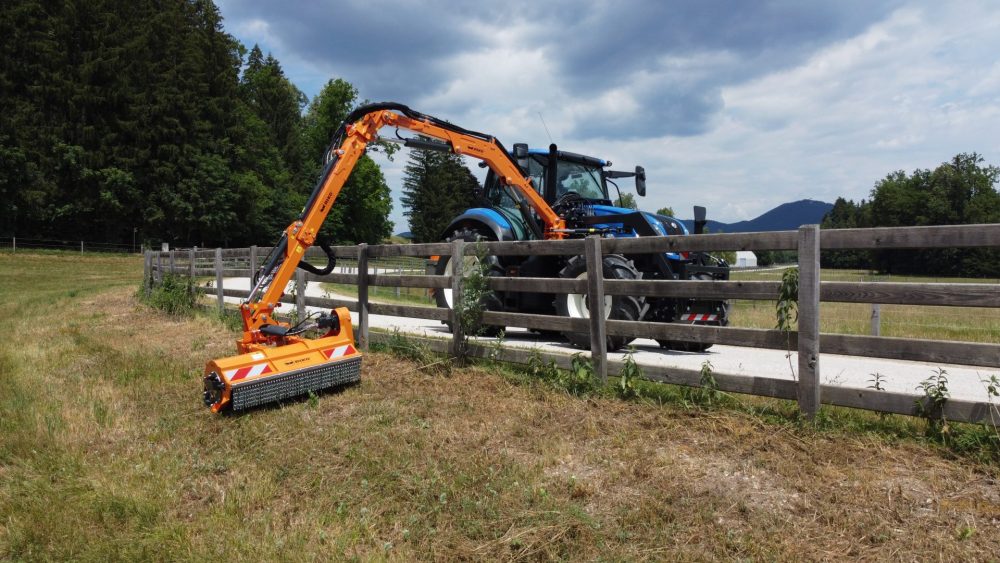

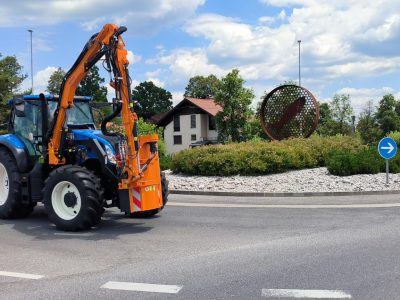

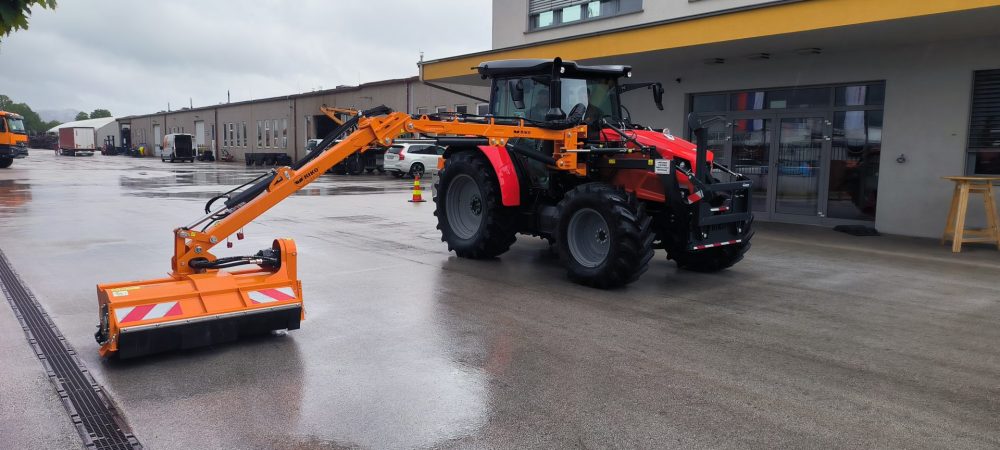

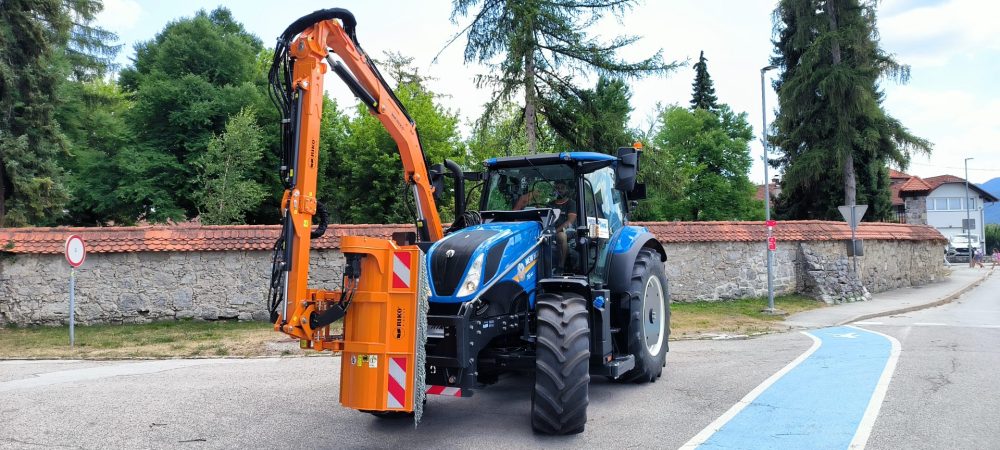

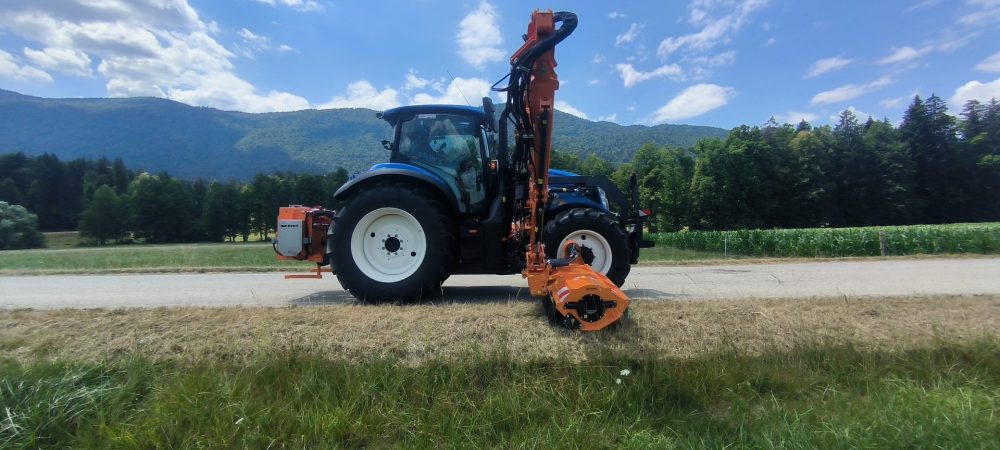

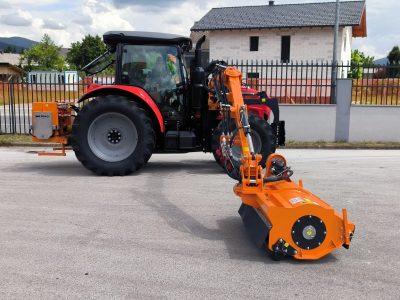

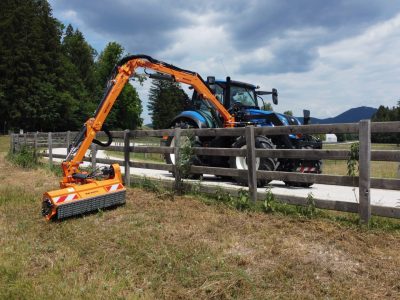

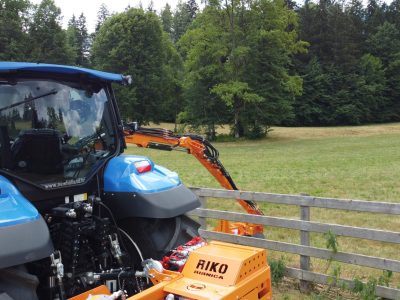

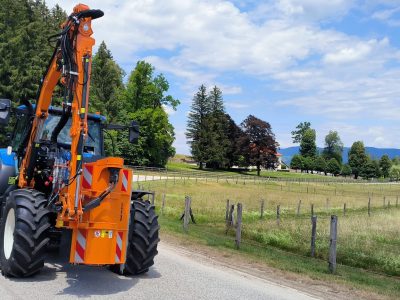

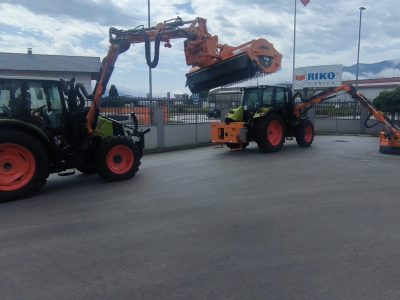

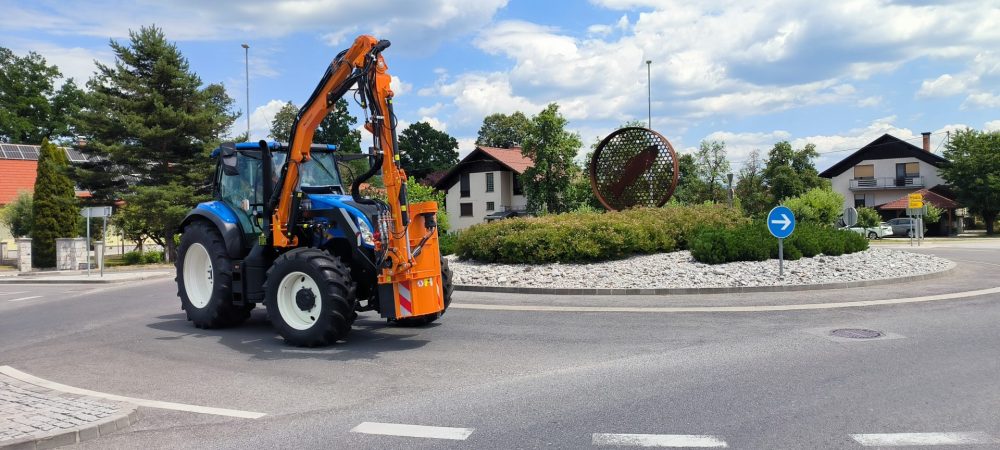

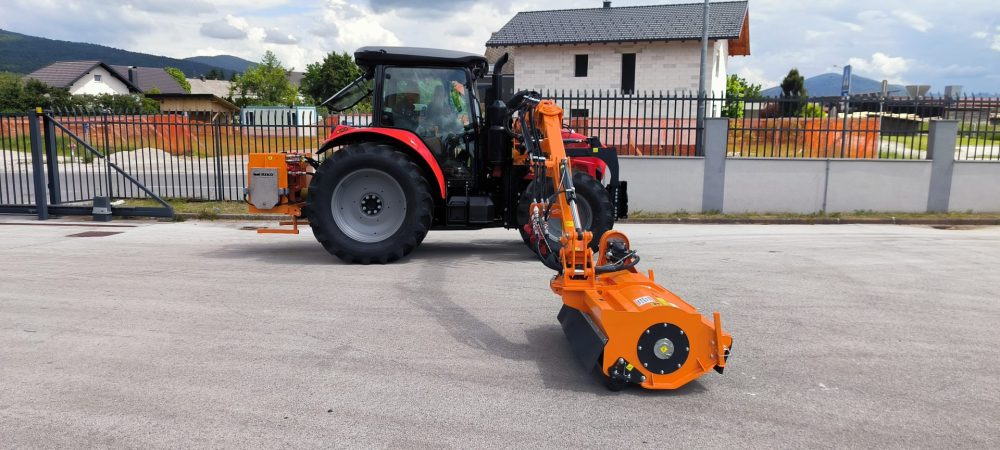

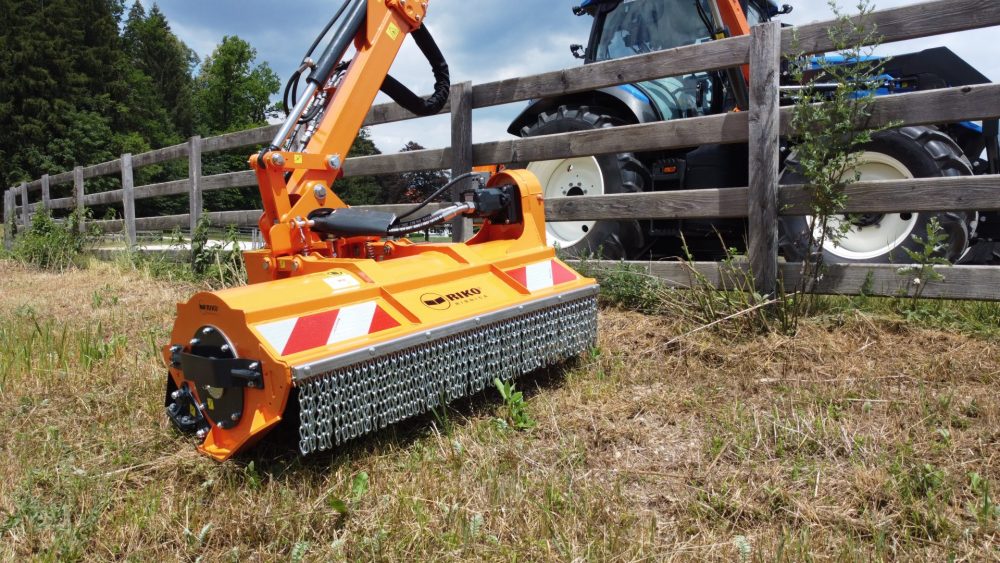

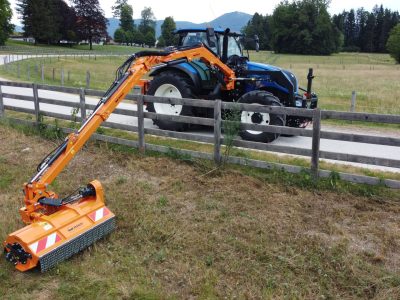

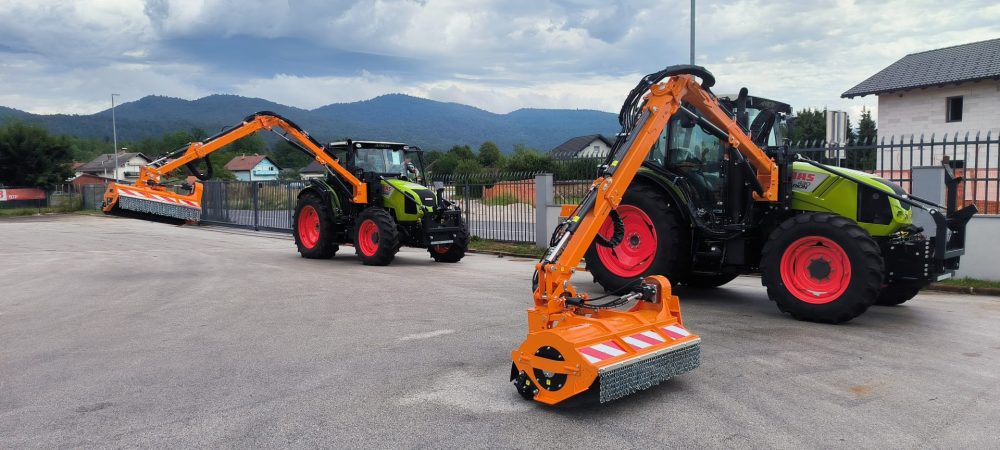

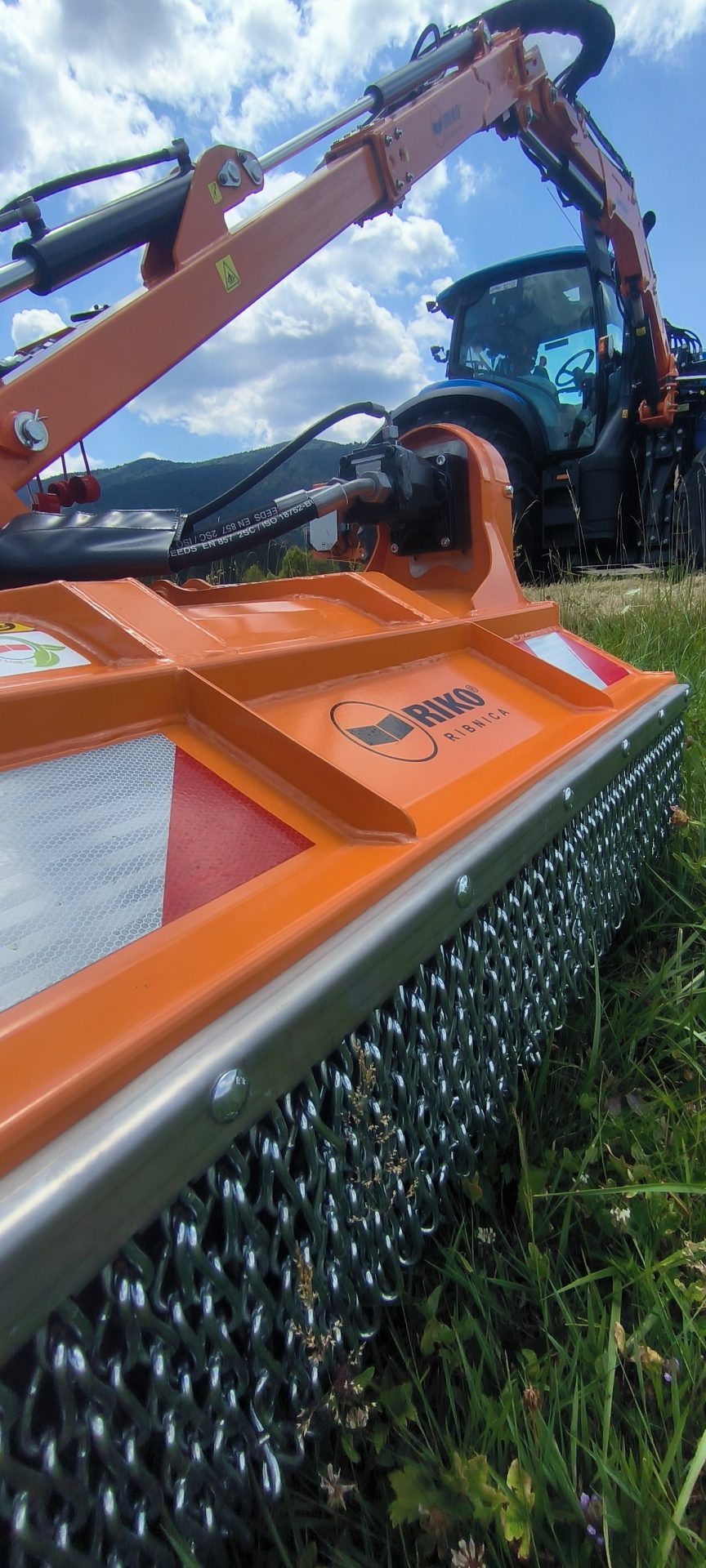

The side-mounted crane BK mower is a professional and reliable solution for mowing grass, shrubs and similar vegetation in areas along roads and canals. The crane arms are made of high-quality material with extremely long reach. The mower is located between the front and rear axles of the tractor, so the driver is provided with excellent visibility and avoids obstacles easier when working. The cutting head on the crane arm can be replaced with any of the additional implements, increasing usability to cleaning the roadside trenches, dumping snow or cutting branches.

Drive and control

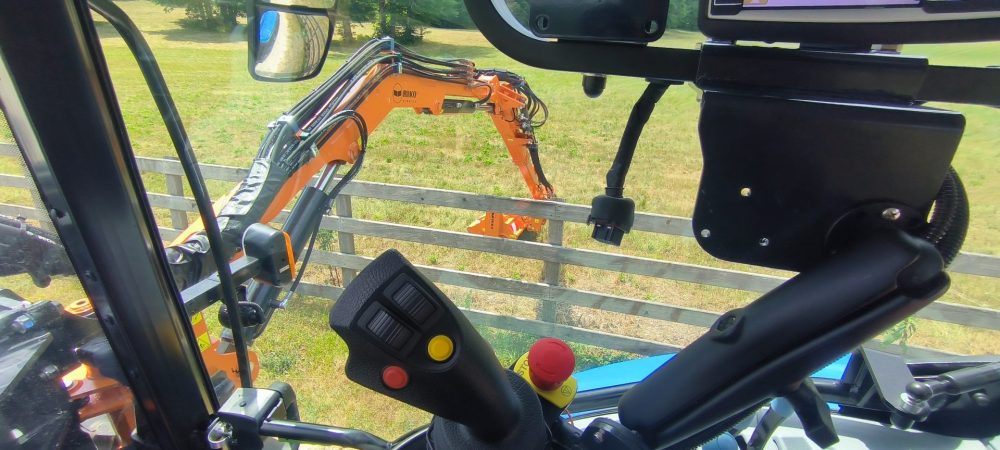

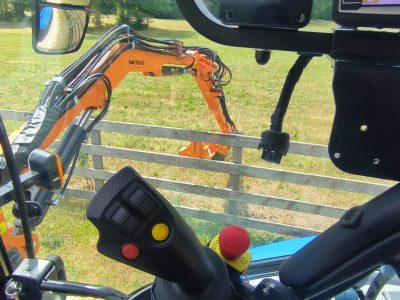

The mower has a hydraulic unit powered via the PTO shaft to drive the control system of the levers and the rotor on the cutting head or other implement. Hydraulic unit circuits of the vehicle can also be used. The mower is equipped with an advanced proportional steering system with a single-hand joystick and a Riko iCom LCD colour control panel. The mower is operated by the driver from the vehicle’s cabin.

Functions of the iCom control panel:

  • LCD colour display
  • CAN bus connection and certified control panel
  • Adjustable parameters on the control panel
  • Setting the speed of arm movements
  • Cutting head on/off
  • Automatic adapting of the cutting head to terrain
  • Electro-protected operating positions
  • Display of warning messages
  • Service menu
  • Visual display of functions
  • Switch to night lighting of the display and buttons
  • USB port – easy reprogramming and troubleshooting
  • Selection of user language (SL, CR, SR, DE, EN, ES…)

 A number of other features are available – contact us for more information.

Installation and mounting options

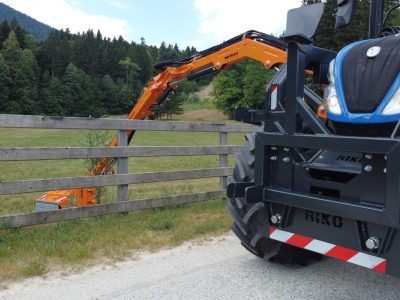

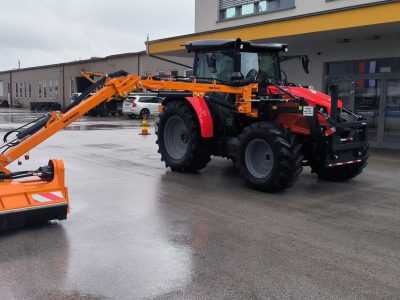

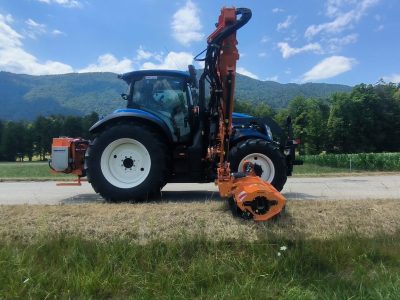

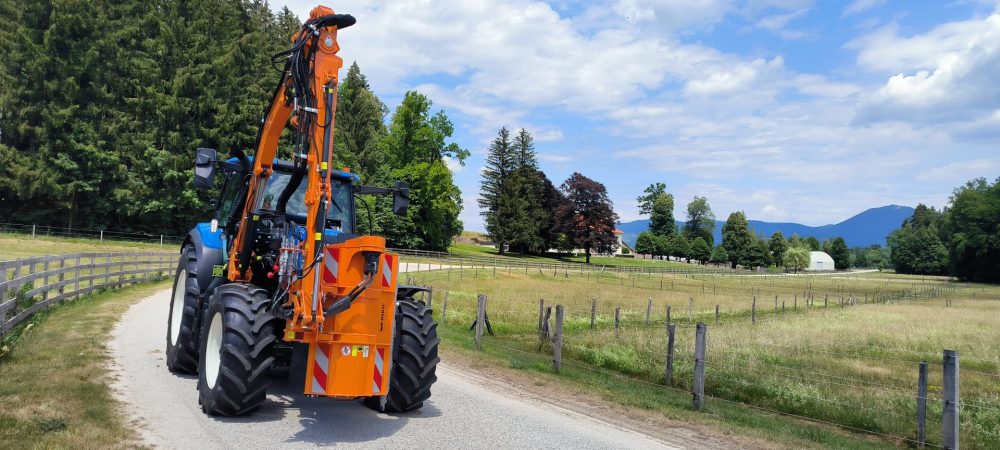

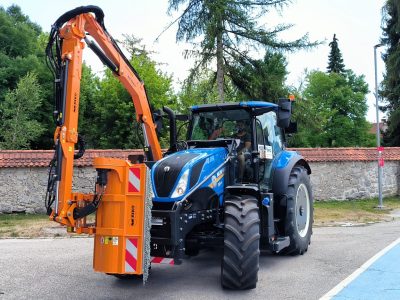

The BK mower is mounted on the right side of the tractor of a suitable size. The support cart for demounting the mower makes mounting or demounting easier, and protects the mower when not in use.

Safety system

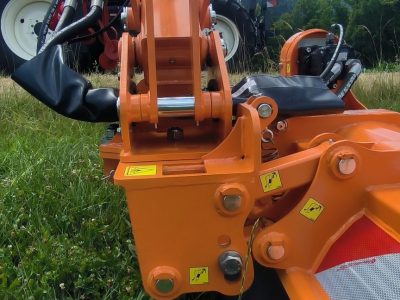

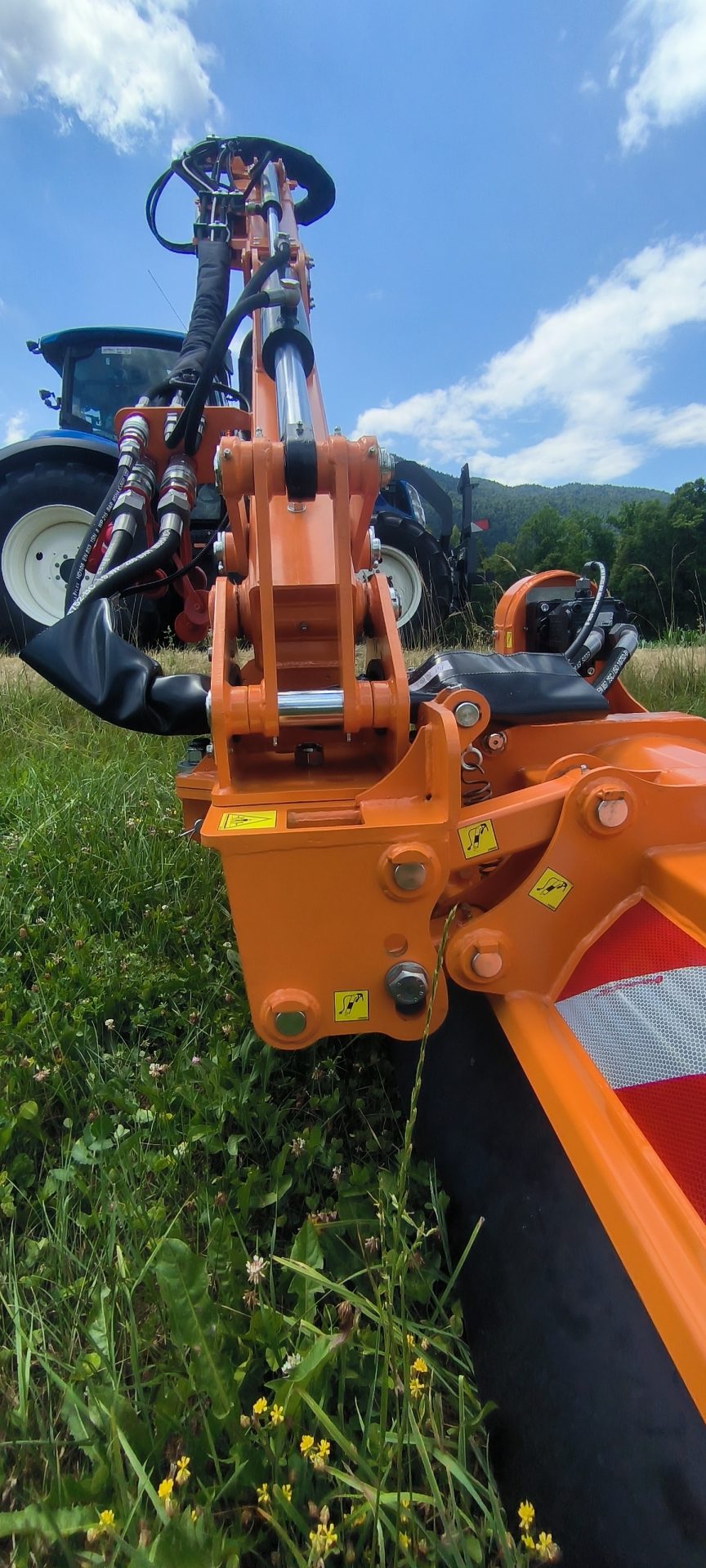

The protection of the mower against mechanical damage when an obstacle is encountered is carried out between the hinges of the levers and the frame with a hydraulic roller and hydraulic accumulator. The cutting head or other implements move away from the obstacle and return to their original position themselves. A RIKOSLED tracking system is an option located between the second lever and the cutting head, allowing automatic adapting to uneven terrain.

BK equipment

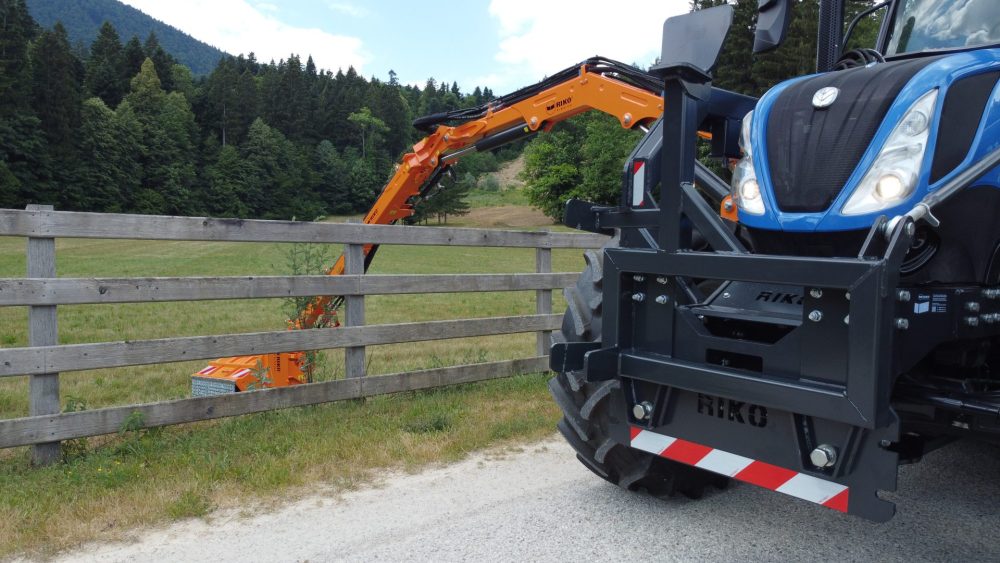

  • Hitch frame adjusted to tractor type
  • Mowing on the right side

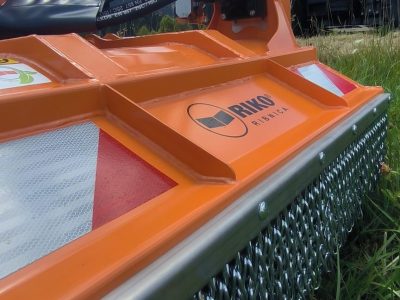

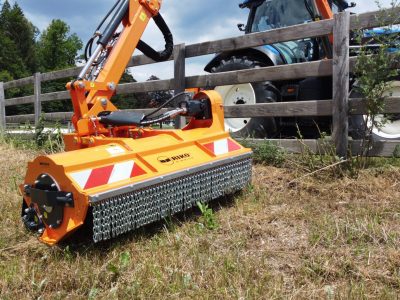

  • Cutting head
  • Hitch frame for implements
  • Hydraulic installation
  • Telescope
  • Selection of mower operation

There are a number of options and additional equipment available – contact us for more information.
