PV Snow plough
Compact snow plough
Compact yet powerful snow plough.
Technical specifications
 Dimensions |
1.7–3.3 m |
 Turning |
0–30° |
 Tilt angle |
0–6° |
 Blade angle |
12° |
 Jump over obstacle |
0–100 mm |
 Purpose of use |
Ploughing |
Main advantages
- Low maintenance costs
- Agile
- Low vehicle load
Characteristics

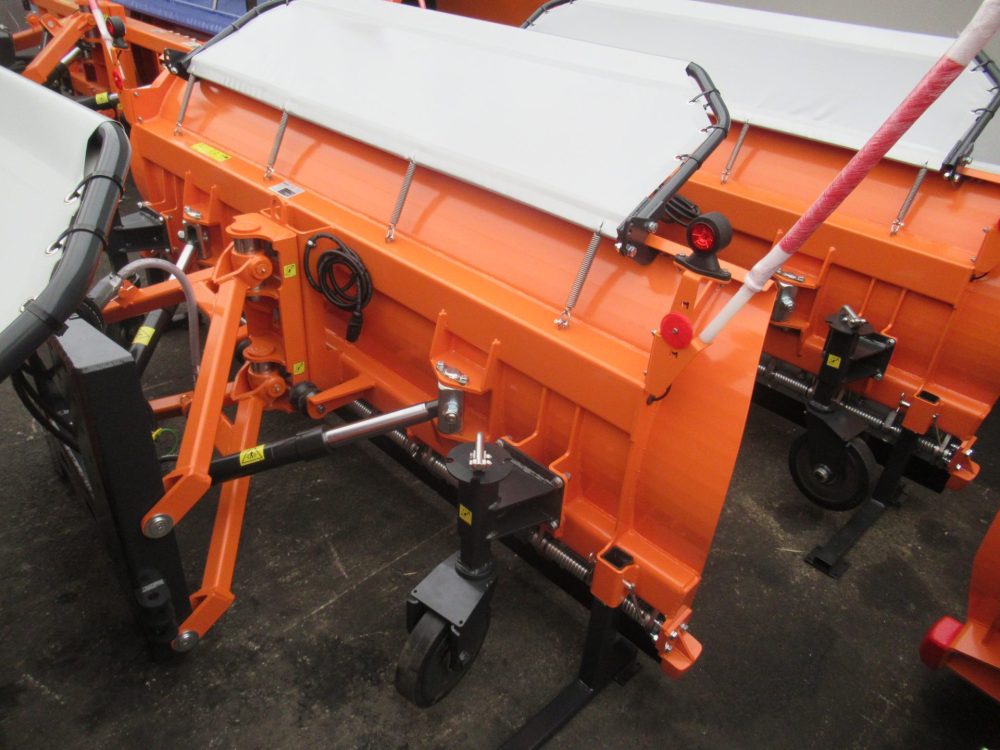

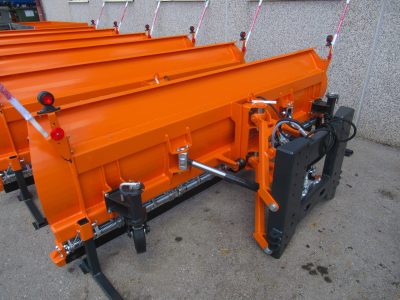

The PV snow plough is part of the Riko Ribnica light-weight programme, which allows the installation on low-weight operating vehicles. It is designed for cleaning local roads, sidewalks and courtyards. It consists of a single segment with the blades mounted under it. PV snow plough is an indispensable tool for easy manoeuvring on sidewalks, parking areas and narrow streets in urban and rural areas.
Plough protection system
A proven and reliable triple safety system makes it easy to pass an obstacle with the help of spring folding flaps, support skates or wheels and hydraulic anti-impact safety system. The springs of the blade create a force that ensures a constant contact of the blade with the surface, ensuring high-quality ploughing even when going through an obstacle, as the blades automatically return to their operating position.
Installation and mounting options
In addition to standard fixing plates and a three-point hitch, we also offer an option for installation on various types of vehicles or working machines. In the design and construction phases, we always follow all standards and ensure that mounting or demounting of the plough is quick and simple.
Drive and control
The plough is hydraulically operated via a control lever and/or an LCD colour display from the vehicle cabin. The hydraulic system on the plough consists of reliable proven components. The snow plough may be driven by a plough-mounted electro-hydraulic system (EHS) or a hydraulic unit of the vehicle. EHS is a simple solution for controlling the plough on vehicles that do not have their own hydraulic unit.
Blades
The plough is basically equipped with wear-resistant metal blades, rubber, polyurethane or combined blades can be installed if desired. The latter are used on surfaces such as granite, ceramics and the like.
Standard equipment
- Segment
- Protection via spring flaps
- Anti-shock safety valve
- Fixing plate (A/5 or B/3) or three-point hitch
- Steel blades (Hardox 450)
- Moving support skates
- Two support legs for demounting the plough
- Side fenders (L+R)
- Hydraulic installation with quick couplings
- Colour RAL 2011
Additional equipment
- Warning labels (red/white reflective label)
- Support wheels instead of support skates
- Snow plough cart instead of support legs for demounting the plough
- Warning lights with flags
- Awning – anti-snow PVC awning
- Special RAL colours by request
A number of other options are available – contact us for more information.
