Technical specifications

Dimensions 1.7–2.6 m
Turning 0–30°
Tilt angle 0–6°
Blade angle 15°
Jump over obstacle 0–50 mm
Purpose of use Ploughing

Main advantages

  • Low maintenance costs
  • Reduced ploughing noise
  • Low vehicle load

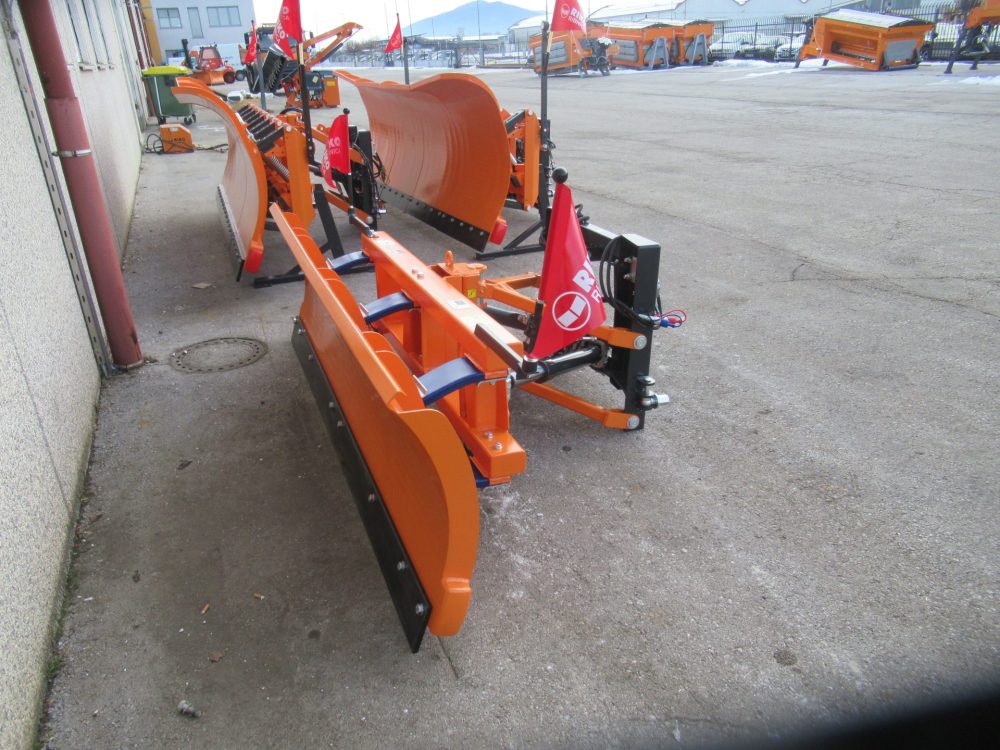

The PG snow plough is designed as a single segment plough, which is designed for use on smaller and lighter vehicles for cleaning local roads, sidewalks and courtyards due to its compact dimensions. It is distinguished by mobility and low weight, while retaining high performance.

Plough protection system

A proven and reliable triple safety system makes it easy to pass an obstacle with the help of oscillating links, support skates or wheels and hydraulic impact-resistant safety system. Oscillating links make it easy to pass an obstacle and are also a connecting element between the frame and the segment. They are distinguished by reliability, reducing noise and vibration while ploughing.

Installation and mounting options

In addition to standard fixing plates and a three-point hitch, we also offer an option for installation on various types of vehicles or working machines. In the design and construction phases, we always follow all standards and ensure that mounting or demounting of the plough is quick and simple.

Drive and control

The plough is hydraulically operated via a control lever and/or an LCD colour display from the vehicle cabin. The hydraulic system on the plough consists of reliable proven components. The snow plough may be driven by a plough-mounted electro-hydraulic system (EHS) or a hydraulic unit of the vehicle. EHS is a simple solution for controlling the plough on vehicles that do not have their own hydraulic unit.


The PG snow plough is basically equipped with wear-resistant metal blades, rubber, polyurethane or combined blades can be installed if desired. The latter are used on surfaces such as granite, ceramics and the like.

Standard equipment

  • Frame with a single segment
  • Safety system with PU elastic swing arms
  • Anti-shock safety valve
  • Fixing plate (A/5 or B/3) or three-point hitch
  • Steel blade (Hardox 450)
  • Support skates
  • Side fenders (L+R)
  • Hydraulic installation with quick couplings
  • Colour RAL 2011

Additional equipment

  • Warning labels (red/white reflective label)
  • Warning lights with flags
  • Additional lights with brackets on the plough
  • Special RAL colours by request

A number of other options are available – contact us for more information.

Service and

We are aware that only quick and professional assistance ensures efficient work with our products. Therefore, we pay great attention to after-sales cooperation. A well-equipped service department ensures that your work runs smoothly in all seasons. In winter, we provide you with 24-hour assistance and offer help even in the most difficult conditions.
